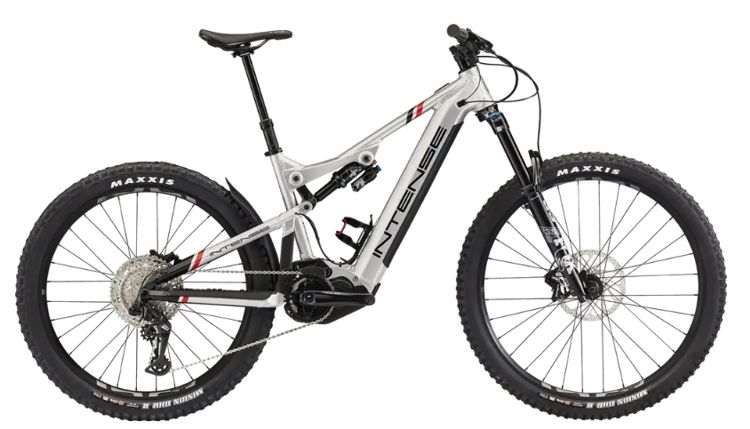

2023 Intense Tazer Alloy Pro eBike
With 155mm of rear travel and 160mm on the front, Shimano’s awesome STEPS EP800 motor system, a 630Wh integrated downtube battery, Fox suspension and a 279/mullet wheel set-up, you get great handling, amazing grip and trail ride excellence. The Tazer Alloy is all about getting out there and enjoying the mountain bike experience, helping you climb faster, ride further and do more of the ‘good stuff’.
| BUILD | PRO | |
| WEIGHT | 26.3KG (SM), 26.3KG (MD), 26.3KG (LG), 26.8KG (XL) – Tubeless, no pedals) | |
| FRAME |
Tazer Performance Alloy Frame. Alloy top link, internal shift, dropper, post, brake, display unit routing, E*Spec Chainguide mount pattern, flak guard armor, integrated mud guard, 160mm front travel, 155mm rear travel, UDH hanger |
|
| MOTOR | Shimano STEPS EP800 | |
| BATTERY |
BT-E8036, for STEPS, 630Wh Battery lock w/ 2 keys |
|
| DISPLAY UNIT | Shimano SC-EM800 | |
| SWITCH | Shimano SW-EM800-L | |
| FORK | FOX Performance Elite Float 38, 29″ 160mm, GRIP 2 Damper, 51mm offset | |
| SHOCK | FOX Float X2 Factory 185×55 2-position | |
| WHEELSET | e*thirteen e*spec 30mm, 110x15mm, 29″ front / e*thirteen e*spec 35mm, 148x12mm, 27.5″ rear | |
| HUBS | INTENSE E-MTN Alloy Hubs | |
| TIRES |
MAXXIS Minion DHR II, 3C, Exo+, Tubeless-ready 29″ x 2.60″ front / 27.5″ x 2.80″ rear |
|
| SHIFTER | TRP SL-M9050-12R EVO 12-speed | |
| DERAILLEUR | TRP RD-M9050-L EVO 12-speed | |
| CRANK | e*thirteen e*spec Plus, 34 tooth chainring, 165mm length | |
| CASSETTE | Shimano Deore CS-M6100 12-speed, 10-51T | |
| CHAIN |
KMC E12 Turbo 12-speed |
|
| CHAIN GUIDE | e*thirteen e*spec Plus | |
| BRAKESET | TRP DH-R EVO, HD-M846 / 203mm rotors | |
| SEATPOST | e*thirteen Vario Dropper 31.6mm / 150mm (SM) / 180mm (MD, LG) / 210mm (XL) | |
| SADDLE |
SDG Bel-Air V3 |
|
| HANDLEBAR |
e*thirteen Base Alloy 35 / 800mm |
|
| HEADSET |
INTENSE ZS49/ZS56 |
|
| STEM |
e*thirteen Base Alloy 35 / 40mm |
|
| GRIPS | INTENSE Lock-On |
| SIZE | SM |
MD |
LG | XL |
|---|---|---|---|---|
| WHEELBASE | 1197 MM / 47.1″ | 1228 MM / 48.4″ | 1258 MM / 49.5″ | 1288 MM / 50.7″ |
| TOPTUBE LENGTH | 579 MM / 22.8″ | 608 MM / 23.9″ | 636 MM / 25″ | 666.3 MM / 26.2″ |
| CHAINSTAY LENGTH | 450 MM / 17.7″ | 450 MM / 17.7″ | 450 MM / 17.7″ | 450 MM / 17.7″ |
| HEADTUBE LENGTH | 100 MM / 4″ | 115 MM / 4.5″ | 125 MM / 4.9″ | 125 MM / 4.9″ |
| HEADTUBE ANGLE | 64.6˚ | 64.6˚ | 64.6˚ | 64.6˚ |
| REACH | 415 MM / 16.4″ | 440 MM / 17.3″ | 465 MM / 18.3″ | 496 MM / 19.5″ |
| STACK | 616 MM / 24.3″ | 630 MM / 24.8″ | 639 MM / 25.2″ | 640 MM / 25.2″ |
| BB HEIGHT | 355 MM / 14″ | 355 MM / 14″ | 355 MM / 14″ | 355 MM / 14″ |
| BB DROP | 16.5 MM / 0.65″ |
16.5 MM / 0.65″ |
16.5 MM / 0.65″ |
16.5 MM / 0.65″ |
| SEATTUBE ANGLE (EFFECTIVE) | 75˚ |
75˚ |
75˚ |
75˚ |
| SEATTUBE ANGLE (ACTUAL) | 72.6˚ |
72.6˚ |
72.6˚ |
72.6˚ |
| SEATTUBE LENGTH | 395 MM / 15.5″ | 420 MM / 16.5″ | 445 MM / 17.5″ | 470 MM / 18.5″ |
| STANDOVER HEIGHT | 814 MM / 32″ | 819 MM / 32.3″ | 826 MM / 32.5″ | 831 MM / 32.7″ |
| FORK AXLE TO CROWN | 577.7 MM / 22.7″ |
577.7 MM / 22.7″ |
577.7 MM / 22.7″ |
577.7 MM / 22.7″ |
| LOWER HEADSET STACK HEIGHT | 4 MM / 0.16″ | 4 MM / 0.16″ | 4 MM / 0.16″ | 4 MM / 0.16″ |
| FORK OFFSET | 44 MM / 1.7″ | 44 MM / 1.7″ | 44 MM / 1.7″ | 44 MM / 1.7″ |
| FORK TRAIL | 129 MM / 5.1″ | 129 MM / 5.1″ | 129 MM / 5.1″ | 129 MM / 5.1″ |
| FORK TRAVEL | 160 MM / 6.3″ | 160 MM / 6.3″ | 160 MM / 6.3″ | 160 MM / 6.3″ |
| REAR TRAVEL | 155 MM / 6.1″ | 155 MM / 6.1″ | 155 MM / 6.1″ | 155 MM / 6.1″ |
| REAR SHOCK SIZE | 185 x 55 | 185 x 55 | 185 x 55 | 185 x 55 |
| FRONT CENTER | 748 MM / 29.4″ | 778 MM / 31″ | 808 MM / 32.8″ | 838 MM / 33″ |
| BB HEIGHT BASED ON FRONT TIRE OD | 750 MM / 29.5″ | 750 MM / 29.5″ | 750 MM / 29.5″ | 750 MM / 29.5″ |
| BB HEIGHT BASED ON REAR PLUS TIRE OD | 730 MM / 28.7″ | 730 MM / 28.7″ | 730 MM / 28.7″ | 730 MM / 28.7″ |
| Frame | S, M, L, XL |
|---|
